Godwit House
Download
as PDF Godwit House is a one-off house on the edge of Warkworth, Northumberland, designed as a response to both the client and the place.The clients life is captured by creating places for her collection of objects picked up through work and travel. The place is captured in the orientation of windows to key views and the materials which are familiar to the agricultural structures found locally.Bedrooms are on the ground floor, clustered around a courtyard garden, the upper floor is a large living, kitchen and dining space with windows splayed to the views across the Coquet estuary.Materials are low in embodied carbon and the house needs very little energy to heat, it also generates electricity through a PV array on the roof. The project increases local biodiversity, with a green roof, rainwater harvesting and a pond to accommodate visiting wildlife.The house is built from high quality materials, it achieved exceptional airtightness and is a certified Passivhaus.
Godwit House : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.
Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | - | - | - |
|---|---|---|---|
| Natural gas use | - | - | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

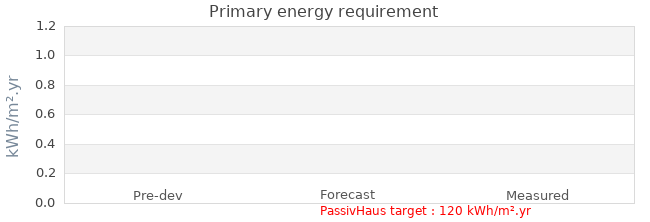

| Primary energy requirement | - | - | - |
|---|---|---|---|
| Annual CO₂ emissions | - | - | - |
| Annual space heat demand | - | 14 kWh/m².yr | 14 kWh/m².yr |
Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| Renewables Technology | - | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | - | - |
| Primary energy requirement offset by renewable generation | - | - |
| Annual CO₂ emissions offset by renewable generation | - | - |
Calculation and targets
| Whole house energy calculation method | PHPP |
|---|---|
| Other whole house calculation method | - |
| Energy target | PassivHaus |
| Other energy targets | - |
| Forecast heating load | 9 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | - |
|---|---|---|
| Final air permeability test | - | 0.2m³/m².hr @ 50 Pascals |
Project description
| Stage | Occupied |
|---|---|
| Start date | 01 March 2022 |
| Occupation date | 01 December 2021 |
| Location | Warkworth Northumberland England |
| Build type | New build |
| Building sector | Private Residential |
| Property type | Detached |
| Construction type | Softwood frame |
| Other construction type | |
| Party wall construction | |
| Floor area | 190.42 m² |
| Floor area calculation method | Treated Floor Area (PHPP) |
| Building certification |  Passivhaus certified building |
Project Team
| Organisation | MawsonKerr |
|---|---|
| Project lead person | RIBA Domestic Building Contract |
| Landlord or Client | Private |
| Architect | MawsonKerr |
| Mechanical & electrical consultant | NA |
| Energy consultant | NA |
| Structural engineer | NA |
| Quantity surveyor | NA |
| Consultant | WARM |
| Contractor | True North Construction |
Design strategies
| Planned occupancy | |
|---|---|
| Space heating strategy | |
| Water heating strategy | |
| Fuel strategy | |
| Renewable energy strategy | |
| Passive Solar strategy | |
| Space cooling strategy | |
| Daylighting strategy | |
| Ventilation strategy | |
| Airtightness strategy | |
| Strategy for minimising thermal bridges | |
| Modelling strategy | PHPP |
| Insulation strategy | |
| Other relevant retrofit strategies | |
| Contextual information |
Building services
| Occupancy | |
|---|---|
| Space heating | |
| Hot water | |
| Ventilation | |
| Controls | |
| Cooking | |
| Lighting | |
| Appliances | |
| Renewable energy generation system | |
| Strategy for minimising thermal bridges |
Building construction
| Storeys | 2 |
|---|---|
| Volume | - |
| Thermal fabric area | - |
| Roof description | Timber Frame |
| Roof U-value | 0.07 W/m² K |
| Walls description | Timber Frame |
| Walls U-value | 0.12 W/m² K |
| Party walls description | |
| Party walls U-value | - |
| Floor description | Insulated Raft |
| Floor U-value | 0.08 W/m² K |
| Glazed doors description | |
| Glazed doors U-value | - uninstalled |
| Opaque doors description | |
| Opaque doors U-value | 0.77 W/m² K uninstalled |
| Windows description | Alu-Clad Timber |
| Windows U-value | 0.77 W/m² K - |
| Windows energy transmittance (G-value) | - |
| Windows light transmittance | - |
| Rooflights description | |
| Rooflights light transmittance | - |
| Rooflights U-value | - |
