Steijger Solar House
Download
as PDF Timber framed, super insulated detached dwelling with whole house ventilation and heat recovery. Rainwater harvasting system and P.V. on south facing roof.
Steijger Solar House : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.

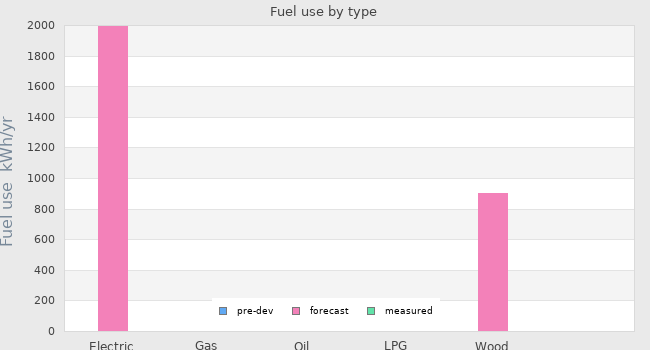

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | - | 2000 kWh/yr | - |
|---|---|---|---|
| Natural gas use | - | - | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | 900 kWh/yr | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

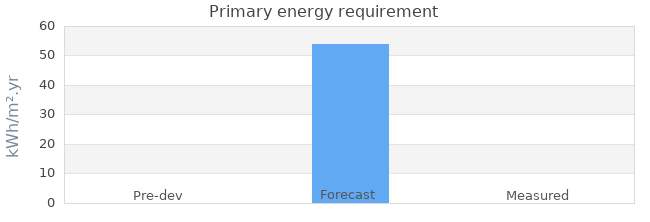

| Primary energy requirement | - | 54 kWh/m².yr | - |
|---|---|---|---|

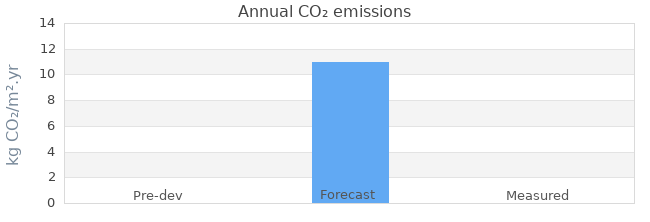

| Annual CO₂ emissions | - | 11 kg CO₂/m².yr | - |
| Annual space heat demand | - | 10 kWh/m².yr | - |

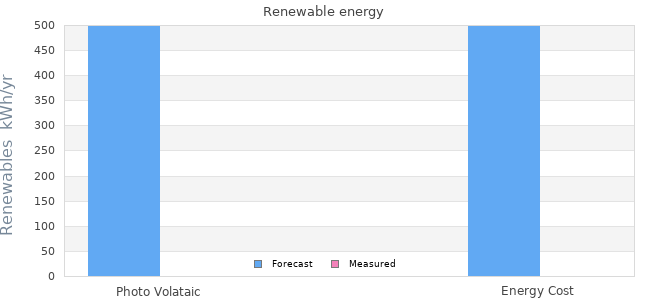

Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| Photo Volataic | 500 kWh/yr | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | 500 kWh/yr | - |
| Primary energy requirement offset by renewable generation | 54 kWh/m².yr | - |
| Annual CO₂ emissions offset by renewable generation | 11 kg CO₂/m².yr | - |
Calculation and targets
| Whole house energy calculation method | OTHER |
|---|---|
| Other whole house calculation method | Lumped parameter calculation, SAP was not able to incorperate all the features of the house |
| Energy target | none was avialble at time of build |
| Other energy targets | - |
| Forecast heating load | 100 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | - |
|---|---|---|
| Final air permeability test | - | - |
Project description
| Stage | Occupied |
|---|---|
| Start date | 17 July 2001 |
| Occupation date | 30 March 2002 |
| Location | South Normanton Derbyshire England |
| Build type | New build |
| Building sector | Private Residential |
| Property type | Detached |
| Construction type | Softwood frame |
| Other construction type | red cedar cladding |
| Party wall construction | |
| Floor area | 110 m² |
| Floor area calculation method | Actual Floor Area (SAP) |
| Building certification |
Project Team
| Organisation | Silvercrest Energy and Automation |
|---|---|
| Project lead person | Claremont Construction, Cromford |
| Landlord or Client | Mr. L. Steijger |
| Architect | A. Newton, Idridgehay |
| Mechanical & electrical consultant | |
| Energy consultant | Silvercrest Energy and Automation |
| Structural engineer | |
| Quantity surveyor | |
| Consultant | |
| Contractor |
Design strategies
| Planned occupancy | Two adults, mostly working from home. |
|---|---|
| Space heating strategy | Solid bio-fuel stove, due to super insulation and air circulation little other heating is required. |
| Water heating strategy | Air source heat pump, extracting heat from excess in the dwelling. |
| Fuel strategy | Mains electricity, bio-fueled stove |
| Renewable energy strategy | 1 kWp. photovoltaics on south facing roof. |
| Passive Solar strategy | Large due south facing conservatory with overhanging roof provided heating in the winter whilst preventing overheating in the summer. |
| Space cooling strategy | Due to incorperating all factors into the design, not required. One of the standard features of MVHR now is to bypass the heat recovery during warm periods. |
| Daylighting strategy | Strategically placed windows on east and west provide sufficient daylight most whole year round, whilst preventing too much solar gain in summer. |
| Ventilation strategy | Mechanical ventilation with heat recovery in winter, summer bypass and opening windows in case of extreme heat. |
| Airtightness strategy | Blown in insulation material ensured that all possible gabs are filled. Foam filling between window ledges and windows ensured air tightness at these points. |
| Strategy for minimising thermal bridges | Use of masonite beams reduced the thermal (wooden) bridges between inner and outer leaf. |
| Modelling strategy | Lumped parameter modeling, later design confirmed with modelling package TRNSys |
| Insulation strategy | Blown in woodfibre (Warmcell) ensured an insulation value below 0.13 W/m2'C |
| Other relevant retrofit strategies | |
| Contextual information |
Building services
| Occupancy | 2 people, mostly working from home |
|---|---|
| Space heating | Central 9 kW woodstove |
| Hot water | WWK 300 heat pump Stieble Eltron |
| Ventilation | ITHO MVHR |
| Controls | Not required |
| Cooking | Induction hob |
| Lighting | Mainly low energy, Halogen in living area |
| Appliances | All appliances A or better rated, apart from condensing dryer. However, the heat is transferred in to the house and not lost as such. |
| Renewable energy generation system | 1.02 kWp PV |
| Strategy for minimising thermal bridges | Masonite beams in external walls |
Building construction
| Storeys | 2 |
|---|---|
| Volume | 374m³ |
| Thermal fabric area | - |
| Roof description | Pitched at 40 degrees for optimal solar collection |
| Roof U-value | 0.13 W/m² K |
| Walls description | Timber frames, mesonite wall |
| Walls U-value | 0.13 W/m² K |
| Party walls description | |
| Party walls U-value | - |
| Floor description | floating concrete floorslab with expanded polystyreen insulation. |
| Floor U-value | 0.15 W/m² K |
| Glazed doors description | Timber doors with either double glazed or timber plate. |
| Glazed doors U-value | 3.00 W/m² K installed |
| Opaque doors description | |
| Opaque doors U-value | - - |
| Windows description | Turn and tilled double glased units. All windows have a close fitting thermal lined curtain. The U-value is estimated at 3 W/m2'C with the curtains open and 1.2 with the curtains closed. |
| Windows U-value | 1.20 W/m² K - |
| Windows energy transmittance (G-value) | - |
| Windows light transmittance | 80% |
| Rooflights description | |
| Rooflights light transmittance | - |
| Rooflights U-value | - |
