National Energy Centre Phase II

download as PDF
Download
as PDF
Low energy office building to serve as HQ for National Energy Foundation. Low thermal mass, heated from Ground Source Heat Pump to underfloor circuits, natural ventilation, good use of daylight, some external overshading, plus solar DHW and photovoiltaics - all at a net zero additional cost!
Images Graphs Figures Description Strategies Building

No images have been supplied for this project



CO2 emissionsPrimary energy requirement
Energy target
2002 Building Regs

Energy and fuel use

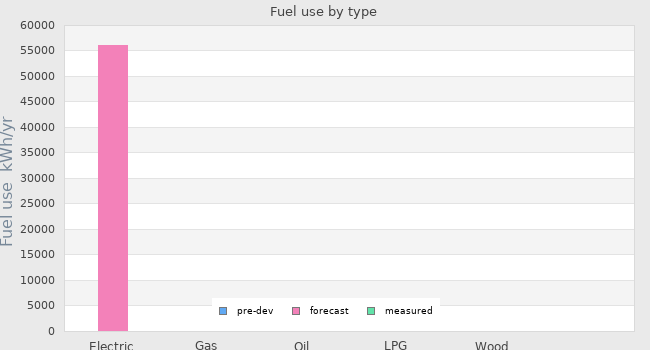

Fuel use by type
Primary energy requirement
CO2 emissions
Renewables

Measured data from renewable generation is not yet available.

Fuel use

 Pre-developmentForecastMeasured
Electricity use - 56000 kWh/yr -
Natural gas use- - -
Oil use- - -
LPG use- - -
Wood use- - -
Other Fuel - - -
 Pre-developmentForecastMeasured
Primary energy requirement - 326 kWh/m².yr -
Annual CO₂ emissions - 77 kg CO₂/m².yr -
Annual space heat demand - 47 kWh/m².yr -

Renewable energy

Electricity generationForecastMeasured
Renewables Technology--
Other Renewables Tech--
Electricity consumed by generation --
Primary energy requirement
offset by renewable generation
326 kWh/m².yr -
Annual CO₂ emissions
offset by renewable generation
77 kg CO₂/m².yr -

Calculation and targets

Whole house energy calculation method
Other whole house calculation method-
Energy target 2002 Building Regs
Other energy targets-
Forecast heating load 33.5 W/m² demand

Airtightness

 DateResult
Pre-development air permeability test--
Final air permeability test--

Project description

StageOccupied
Start date21 February 2004
Occupation date
Location Milton Keynes Buckinghamshire  England
Build typeNew build
Building sectorCommercial
Property typeDetached
Construction typeTimber frame
Other construction type
Party wall construction
Floor area 430
Floor area calculation method Approximate Floor Area
Building certification

Project Team

Organisation
Project lead person
Landlord or ClientThe National Energy Foundation
ArchitectAvebury Projects
Mechanical & electrical consultant NEF
Energy consultantNEF/Very Efficient Heating Co/Earth Energy Systems
Structural engineerAvebury Projects
Quantity surveyorDavis Langdon & Everest
Consultant
ContractorAvebury Direct Procurement, though JCT minor works

Design strategies

Planned occupancyUp to 40 people, office based, from the National Energy Foundation and Milton Keynes Energy Agency
Space heating strategyUnderfloor heating, to maximise wall space in an open plan office (ie. no radiators), supplied by a high performance Ground Source Heat Pump. All electric system permits cost savings through no mains gas connection. Backup heating from biomass (pellet) stove. Low thermal mass building, (timber façades to East and West; brick to North and South). High levels of insulation (300mm glass wool in ceiling and walls.)
Water heating strategyStandalone system (not from GSHP as controls too complex), based on solar thermal panels supported by an electric immersion heater.
Fuel strategyMains electricity; on site PV production to partially offset use by GSHP on a cross-seasonal basis. No gas to building. Secondary heating from wood pellets.
Renewable energy strategy6.47kWp PV array on South facing roof. 2 square metres of solar thermal for DHW.
Passive Solar strategyBuilding oriented North-South (due to site layout constraints), so windows on both sides. Solar overheating in afternoons (West façade) to be avoided through brise-soleils; none on East side as potentially useful solar gains on winter mornings. Active solar through PV and Solar hot water.
Space cooling strategyNatural ventilation - high fixed ventilators (open or close seasonally), plus trickle vents and openable windows. Roof design tilted (and in four leaves) to encourage natural cross-flow ventilation. Limited overshading above windows to prevent summer overheating. No A/C.
Daylighting strategyNatural daylight when possible. Large windows to East and West; eight Sunpipes (light tubes) in roof, replacing original concept of north lights, due to complex timber roof framing.
Ventilation strategySee cooling - natural ventilation through vents and opening windows, with roof design to maximise cross-flow ventilation. Air tight building (timber frame) designed to limit losses to 7.5kW.
Airtightness strategy Air tight building (timber frame) designed to limit losses to 7.5kW. Air pressure testing planned, but not undertaken on cost grounds, although there is some visual evidence that the building is not as tight as planned and have been issues in winter with leaks around high level ventilator opening mechanism, requiring sealing with gaffer tape.
Strategy for minimising thermal bridges
Modelling strategy
Insulation strategy
Other relevant retrofit strategies
