CREST Pavilion, South West College, Enniskillen
Download
as PDF The CREST Pavilion is a building that showcases the latest sustainable technologies through the building itself. The Pavilion is designed with classrooms and a lecture space and functions as a Passivhaus School. The building will teach and engage industry through experiencing new sustainable technologies and materials allowing for a deeper engagement and understanding of sustainability.
CREST Pavilion, South West College, Enniskillen : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.

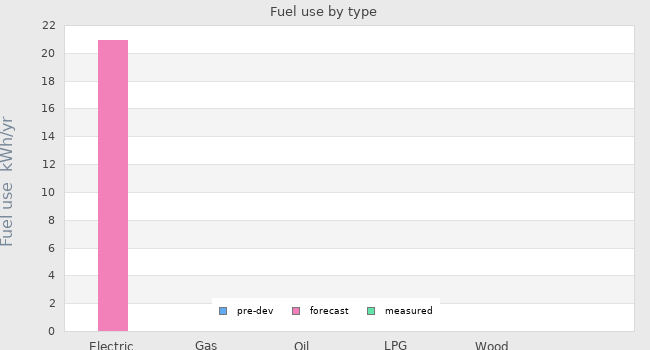

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | - | 20.9 kWh/yr | - |
|---|---|---|---|
| Natural gas use | - | - | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |
| Primary energy requirement | - | - | - |
|---|---|---|---|
| Annual CO₂ emissions | - | - | - |
| Annual space heat demand | - | 13 kWh/m².yr | - |

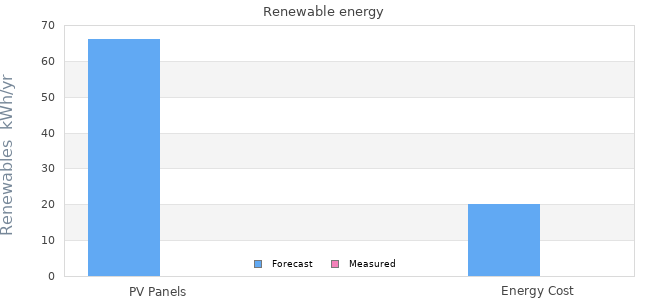

Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| PV Panels | 66 kWh/yr | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | 20 kWh/yr | - |
| Primary energy requirement offset by renewable generation | - | - |
| Annual CO₂ emissions offset by renewable generation | - | - |
Calculation and targets
| Whole house energy calculation method | PHPP |
|---|---|
| Other whole house calculation method | - |
| Energy target | PassivHaus |
| Other energy targets | - |
| Forecast heating load | 12 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | - |
|---|---|---|
| Final air permeability test | 28 November 2014 | 0.6m³/m².hr @ 50 Pascals |
Project description
| Stage | Occupied |
|---|---|
| Start date | 28 November 2013 |
| Occupation date | 29 August 2014 |
| Location | Enniskillen Fermanagh Northern Ireland |
| Build type | New build |
| Building sector | Public |
| Property type | Detached |
| Construction type | Softwood frame |
| Other construction type | |
| Party wall construction | |
| Floor area | 455.35 m² |
| Floor area calculation method | Treated Floor Area (PHPP) |
| Building certification |  Passivhaus certified building |
Project Team
| Organisation | Paul McAlister Architects |
|---|---|
| Project lead person | Paul McAlister Architects |
| Landlord or Client | South West College |
| Architect | Paul McAlister Architects |
| Mechanical & electrical consultant | Cuilinn Engineering Limited |
| Energy consultant | Paul McAlister Architects |
| Structural engineer | George Dawson Ltd |
| Quantity surveyor | Griffin Hughes LPP |
| Consultant | Integrated Services Design Ltd. |
| Contractor | PJ Treacy & Sons Ltd |
Design strategies
| Planned occupancy | |
|---|---|
| Space heating strategy | Air to water Heat Pump, with underfloor distribution. |
| Water heating strategy | Direct electric water heater |
| Fuel strategy | NA |
| Renewable energy strategy | NA |
| Passive Solar strategy | The large areas of glazing to the south assist with solar gain and allows natural light to penetrate deep into the floor plan, reducing the amount of artificial light required. |
| Space cooling strategy | NA |
| Daylighting strategy | NA |
| Ventilation strategy | Zenhder Group Nederland B.V., ComfoAir550 & ComfoAir XL 800Two different units are used in this project, ComfoAir550 with heat recovery rate of 84% working in the Lecture Hall, and ComfoAir XL 800 with HRR of 80% for the rest of the building, eff. specif. HRE: 78% |
| Airtightness strategy | NA |
| Strategy for minimising thermal bridges | NA |
| Modelling strategy | NA |
| Insulation strategy | NA |
| Other relevant retrofit strategies | BREEAM Excellent -energy standard |
| Contextual information | The Centre for Renewable Energy and Sustainable Technologies (CREST) for South West College in Northern Ireland, is an example of integration of the sustainable design and energy efficiency principles. |
Building services
| Occupancy | |
|---|---|
| Space heating | Air to water Heat Pump, with underfloor distribution. |
| Hot water | Direct electric water heater |
| Ventilation | Zenhder Group Nederland B.V., ComfoAir550 & ComfoAir XL 800Two different units are used in this project, ComfoAir550 with heat recovery rate of 84% working in the Lecture Hall, and ComfoAir XL 800 with HRR of 80% for the rest of the building, eff. specif. HRE: 78% |
| Controls | BMS System |
| Cooking | NA |
| Lighting | All LED fittings |
| Appliances | NA |
| Renewable energy generation system | Ground and wall mounted PV system |
| Strategy for minimising thermal bridges | NA |
Building construction
| Storeys | 1 |
|---|---|
| Volume | 2037m³ |
| Thermal fabric area | 20258 m² |
| Roof description | SIPS Panels (polyuretane, 200mm) |
| Roof U-value | 0.16 W/m² K |
| Walls description | SIPS Panels (polyuretane, 200mm) |
| Walls U-value | 0.12 W/m² K |
| Party walls description | NA |
| Party walls U-value | 0.00 W/m² K |
| Floor description | Concrete slab insulated with rigid thermal insulation (250mm) |
| Floor U-value | 0.09 W/m² K |
| Glazed doors description | Triple Glazed |
| Glazed doors U-value | 0.70 W/m² K installed |
| Opaque doors description | NA |
| Opaque doors U-value | - - |
| Windows description | Triple glazing unit, low-e and argon filled. |
| Windows U-value | 0.70 W/m² K - |
| Windows energy transmittance (G-value) | 0.57 % |
| Windows light transmittance | 61% |
| Rooflights description | NA |
| Rooflights light transmittance | - |
| Rooflights U-value | - |
