Bushbury Hill Primary School
Download
as PDF Bushbury Hill primary school was one of the first projects in the country to achieve Passivhaus certification in February 2012. The school was built to the same budget and completed in the same time frame as a traditional build. Due to the challenging nature of the site, there was extensive consultation with the school and its neighbours throughout the design and construction process.
Bushbury Hill Primary School : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.

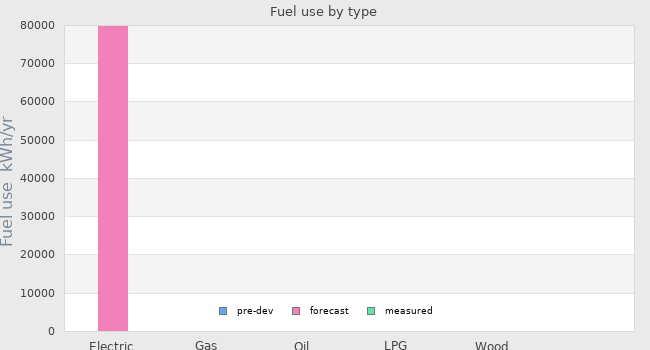

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | - | 80000 kWh/yr | - |
|---|---|---|---|
| Natural gas use | - | - | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

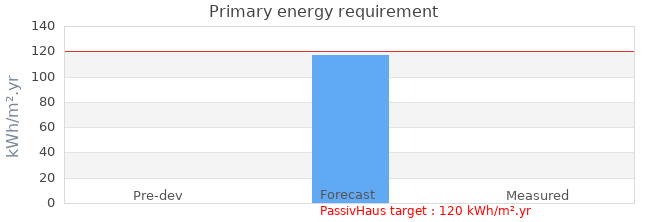

| Primary energy requirement | - | 117 kWh/m².yr | - |
|---|---|---|---|

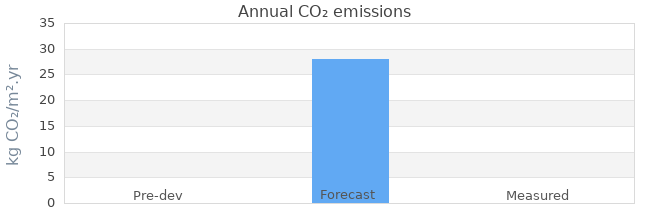

| Annual CO₂ emissions | - | 28 kg CO₂/m².yr | - |
| Annual space heat demand | - | 14 kWh/m².yr | - |
Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| Renewables Technology | - | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | - | - |
| Primary energy requirement offset by renewable generation | 117 kWh/m².yr | - |
| Annual CO₂ emissions offset by renewable generation | 28 kg CO₂/m².yr | - |
Calculation and targets
| Whole house energy calculation method | PHPP |
|---|---|
| Other whole house calculation method | - |
| Energy target | PassivHaus |
| Other energy targets | - |
| Forecast heating load | 12 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | - |
|---|---|---|
| Final air permeability test | - | 0.53m³/m².hr @ 50 Pascals |
Project description
| Stage | Occupied |
|---|---|
| Start date | |
| Occupation date | 01 October 2011 |
| Location | Wolverhampton West Midlands England |
| Build type | New build |
| Building sector | Public |
| Property type | Detached |
| Construction type | Oak frame |
| Other construction type | |
| Party wall construction | |
| Floor area | 1707 m² |
| Floor area calculation method | Treated Floor Area (PHPP) |
| Building certification |  Passivhaus certified building |
Project Team
| Organisation | |
|---|---|
| Project lead person | |
| Landlord or Client | Wolverhampton City Council |
| Architect | Architype |
| Mechanical & electrical consultant | E3 |
| Energy consultant | Nick Grant & Alan Clarke |
| Structural engineer | |
| Quantity surveyor | |
| Consultant | |
| Contractor | Thomas Vale Construction |
Design strategies
| Planned occupancy | |
|---|---|
| Space heating strategy | |
| Water heating strategy | |
| Fuel strategy | |
| Renewable energy strategy | |
| Passive Solar strategy | |
| Space cooling strategy | |
| Daylighting strategy | |
| Ventilation strategy | |
| Airtightness strategy | |
| Strategy for minimising thermal bridges | |
| Modelling strategy | |
| Insulation strategy | |
| Other relevant retrofit strategies | |
| Contextual information |
Building services
| Occupancy | |
|---|---|
| Space heating | |
| Hot water | |
| Ventilation | |
| Controls | |
| Cooking | |
| Lighting | |
| Appliances | |
| Renewable energy generation system | |
| Strategy for minimising thermal bridges |
Building construction
| Storeys | |
|---|---|
| Volume | - |
| Thermal fabric area | - |
| Roof description | |
| Roof U-value | - |
| Walls description | |
| Walls U-value | - |
| Party walls description | |
| Party walls U-value | - |
| Floor description | |
| Floor U-value | - |
| Glazed doors description | |
| Glazed doors U-value | - - |
| Opaque doors description | |
| Opaque doors U-value | - - |
| Windows description | |
| Windows U-value | - - |
| Windows energy transmittance (G-value) | - |
| Windows light transmittance | - |
| Rooflights description | |
| Rooflights light transmittance | - |
| Rooflights U-value | - |
