Centre for Disability Studies: The Peter Broughton Wing
Download
as PDF Simmonds.Mills Architects were commissioned by Disability Essex, a charity based in Essex, UK. The Centre for Disability Studies has been designed as two closely linked buildings; a North Wing, Jean Strutt House and a South Wing, The Peter Broughton Wing. The brief for the The Peter Broughton Wing called for a sustainable building that would provide lettable open plan multipurpose space for the charity to rent out to similar organisations.
Centre for Disability Studies: The Peter Broughton Wing : Project images
Click on image to preview full size

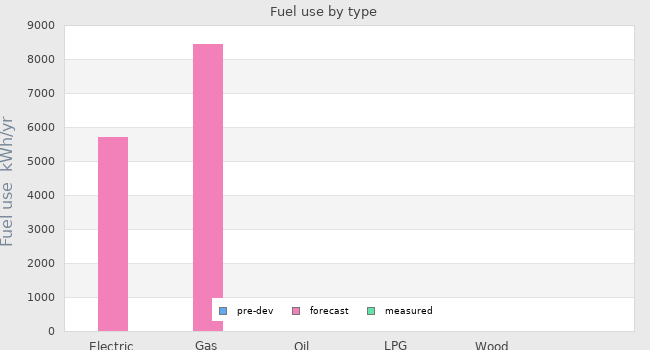

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | - | 5697 kWh/yr | - |
|---|---|---|---|
| Natural gas use | - | 8449 kWh/yr | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

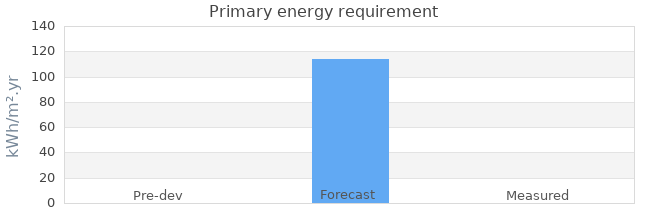

| Primary energy requirement | - | 114 kWh/m².yr | - |
|---|---|---|---|

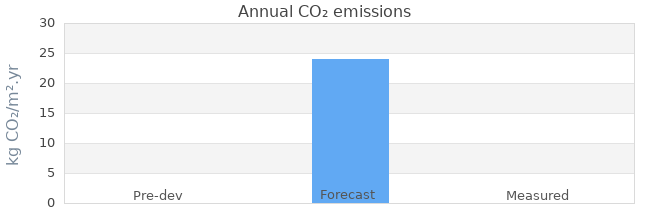

| Annual CO₂ emissions | - | 24 kg CO₂/m².yr | - |
| Annual space heat demand | - | 14 kWh/m².yr | - |

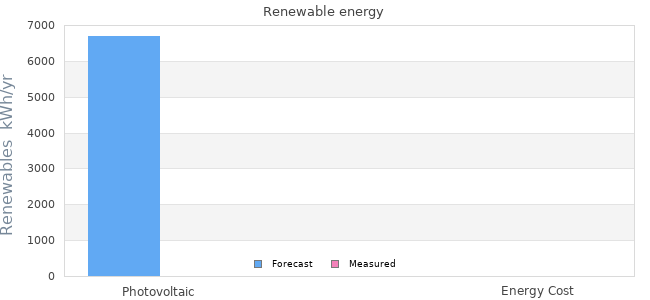

Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| Photovoltaic | 6705 kWh/yr | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | - | - |
| Primary energy requirement offset by renewable generation | 35 kWh/m².yr | - |
| Annual CO₂ emissions offset by renewable generation | 5 kg CO₂/m².yr | - |
Calculation and targets
| Whole house energy calculation method | PHPP |
|---|---|
| Other whole house calculation method | Note forecast space heat demand and gas use based on RFF room temperature of 21C. |
| Energy target | |
| Other energy targets | - |
| Forecast heating load | - |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | - |
|---|---|---|
| Final air permeability test | - | 0.33m³/m².hr @ 50 Pascals |
Project description
| Stage | Occupied |
|---|---|
| Start date | 01 March 2009 |
| Occupation date | 07 March 2010 |
| Location | Rochford Essex England |
| Build type | New build |
| Building sector | Public |
| Property type | Detached |
| Construction type | Other |
| Other construction type | Single skin blockwork with external insulation |
| Party wall construction | |
| Floor area | 211 m² |
| Floor area calculation method | Treated Floor Area (PHPP) |
| Building certification |  Passivhaus certified building |
Project Team
| Organisation | Disability Essex |
|---|---|
| Project lead person | Richard Boyd and Stuart Kirk |
| Landlord or Client | Disability Essex |
| Architect | Simmonds.Mills |
| Mechanical & electrical consultant | Alan Clarke |
| Energy consultant | David Olivier |
| Structural engineer | Bob Johnson |
| Quantity surveyor | Bowen Associates |
| Consultant | Maxine Narborough & Solar Century |
| Contractor | DCH Construction |
Design strategies
| Planned occupancy | |
|---|---|
| Space heating strategy | 1.Extensive passive solar gain.2.Ventilation heat recovery.3.Ground brine loop and heat exchanger, forpre-heating of supply air to MVHR.4. radiators fed from small domestic (natural gas) boiler in plant room of linked building to the north.. |
| Water heating strategy | 1. taps fed from (natural gas) boiler and DHW cylinder in plant room of linked building to the north.2. Solar thermal (evacuated tubes)3. insulated hot and cold water pipework - circulating system. |
| Fuel strategy | 1. Natural gas (minimised use of)2. mains electricity |
| Renewable energy strategy | 1. Photovoltaic panels on freestanding walkway canopy. Not factored in to passivhaus certification. Forecast figure for electricity generated split between the two linked buildings. |
| Passive Solar strategy | Lots of it! |
| Space cooling strategy | 1. Passive ventilation via openable windows2. Summer bypass facility on MVHR.3. Ground brine loop and heat exchanger,for pre-cooling of supply air to MVHR.4. careful design for solar control andshading. |
| Daylighting strategy | Extensive daylighting - using extensivesouth facing high level glazing. |
| Ventilation strategy | 1. MVHR.2. Natural ventilation for night time coolingand as required |
| Airtightness strategy | Air - vapour membranes to ceilings &windows to plastered blockwork to concreteraft. Careful detailing and workmanshiparound service penetrations. |
| Strategy for minimising thermal bridges | Thermal bridge free detailing, referencingAECB CarbonLite guidance. |
| Modelling strategy | PHPP.Daylight modelling.SBEM. |
| Insulation strategy | external wall insulation approaches to walls(areas of Timber clad Larsen trusses andareas of rendered EPS EWI). Load bearingunderfloor insulation (below structural raft).Full fill blown insulation to I beamsuperstructure. Excellent thermal integritythrough careful design and workmanship. |
| Other relevant retrofit strategies | |
| Contextual information |
Building services
| Occupancy | |
|---|---|
| Space heating | |
| Hot water | |
| Ventilation | |
| Controls | |
| Cooking | |
| Lighting | |
| Appliances | |
| Renewable energy generation system | |
| Strategy for minimising thermal bridges |
Building construction
| Storeys | |
|---|---|
| Volume | - |
| Thermal fabric area | - |
| Roof description | |
| Roof U-value | - |
| Walls description | |
| Walls U-value | - |
| Party walls description | |
| Party walls U-value | - |
| Floor description | |
| Floor U-value | - |
| Glazed doors description | |
| Glazed doors U-value | - - |
| Opaque doors description | |
| Opaque doors U-value | - - |
| Windows description | |
| Windows U-value | - - |
| Windows energy transmittance (G-value) | - |
| Windows light transmittance | - |
| Rooflights description | |
| Rooflights light transmittance | - |
| Rooflights U-value | - |
