Refurbishment of Social Housing Stock
Download
as PDF The installation of the new prefabricated roof is key to the innovation of this application. It allows for the retrofitted houses to have a high performing, insulated and airtight roof that enables thermal-bridge-free detailing from the roof eaves to externally insulated walls. It also allows the tenants to remain in occupation whilst the works are carried out to this pair of post-war semi-detached houses in Welshpool. The new roof also allows for new services (MVHR & Solar thermal & PV) to be installed in place to one of the houses, during off-site manufacture, enabling minimum disruption to residents and minimising on-site construction time. The services will be connected through the ceiling later in the process.
Retrofit for the future ZA515H
Refurbishment of Social Housing Stock : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.

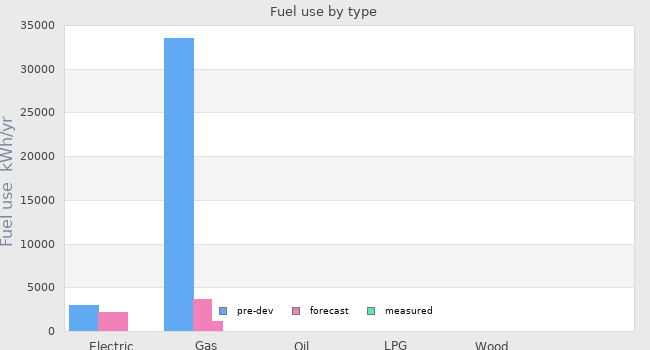

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | 3031 kWh/yr | 2148.48 kWh/yr | - |
|---|---|---|---|
| Natural gas use | 33481 kWh/yr | 3704.64 kWh/yr | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

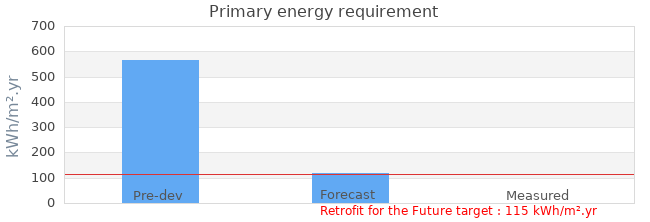

| Primary energy requirement | 565 kWh/m².yr | 118 kWh/m².yr | - |
|---|---|---|---|

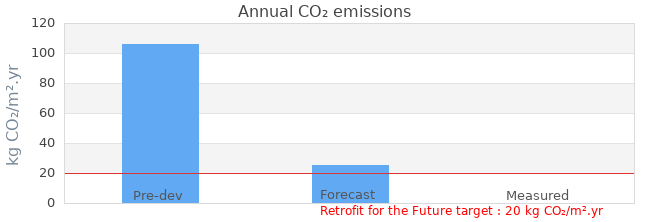

| Annual CO₂ emissions | 106 kg CO₂/m².yr | 25 kg CO₂/m².yr | - |
| Annual space heat demand | - | 28 kWh/m².yr | - |

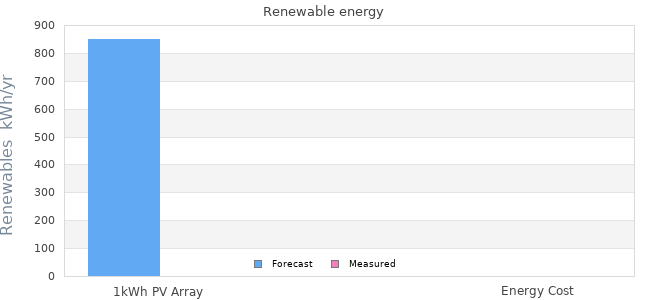

Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| 1kWh PV Array | 850 kWh/yr | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | - | - |
| Primary energy requirement offset by renewable generation | 92 kWh/m².yr | - |
| Annual CO₂ emissions offset by renewable generation | 19 kg CO₂/m².yr | - |
Calculation and targets
| Whole house energy calculation method | PHPP |
|---|---|
| Other whole house calculation method | - |
| Energy target | Retrofit for the Future |
| Other energy targets | - |
| Forecast heating load | 17 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | - |
|---|---|---|
| Final air permeability test | - | - |
Project description
| Stage | Under construction |
|---|---|
| Start date | 07 June 2010 |
| Occupation date | 13 July 2010 |
| Location | Welshpool Powys Wales |
| Build type | Refurbishment |
| Building sector | Public Residential |
| Property type | Semi-Detached |
| Construction type | Masonry Cavity |
| Other construction type | 50mm Cavity filled poorly with |
| Party wall construction | Solid 215mm brick wall plastered either side |
| Floor area | 81.6 m² |
| Floor area calculation method | Treated Floor Area (PHPP) |
| Building certification |
Project Team
| Organisation | Ecostruct |
|---|---|
| Project lead person | Ecostruct |
| Landlord or Client | Powys County Council |
| Architect | Anne Thorne Architects Partnership |
| Mechanical & electrical consultant | |
| Energy consultant | Building Sciences Ltd. |
| Structural engineer | |
| Quantity surveyor | Ecostruct |
| Consultant | |
| Contractor | Ecostruct |
Design strategies
| Planned occupancy | Property A - 1 adult, 4 children Property B - 2 adults, 2 children |
|---|---|
| Space heating strategy | Heating from mains gas fired boiler feeding radiators, connected to Solar Thermal system. MVHR recovers radiators from gas boiler |
| Water heating strategy | Solar hot water with gas boiler-back up - Boiler takes pre-heated water from Solar store enabling full energy from solar store to be utilized. |
| Fuel strategy | Mains Gas Mains Electricity |
| Renewable energy strategy | 1 kWp photovoltaic panel array to be installed |
| Passive Solar strategy | Enlarged opening to south facing elevation. |
| Space cooling strategy | Summer/Cooling Season - Natural Ventilation (openable windows) night purging during hot weather. |
| Daylighting strategy | Triple-glazed windows. Window sizes as existing provide above minimum average daylight factors to kitchen and living/dining areas. |
| Ventilation strategy | High efficiency Whole House Mechanical Ventilation Heat Recovery system with openable windows in summer. |
| Airtightness strategy | Air tightness layer comprises membranes to internal insulated walls, roof and floor, and plaster to external insulated wall with existing plaster parged where necessary. Chimney breast filled, Membranes pre-sealed to new windows and doors, details to AECB gold standard. Precompletion testing |
| Strategy for minimising thermal bridges | Thermal bridges eliminated from eaves to ground by continuous external insulation to walls and new pre-fabricated roof. Newly installed windows ground forward to line of externally insulation to minimise/remove thermal bridges. External wall insulation taken below level of ground floor to diffuse thermal bridge to 0.012W/m.k, which has been simulated. |
| Modelling strategy | Passivhaus Planning Package 2007 (English Version), SAP 2005, Thermal Bridge Modelling |
| Insulation strategy | Externally Applied Wall Insulation - U-Value = 0.142 W/m2K Roof - Insulated timber cassettes = 0.106 W/m2K Existing solid floor insulated with 10mm aerogel = 0.38 W/m2K |
| Other relevant retrofit strategies | Retrofit to be carried out with residents in occupation during to works. Prefabrication element to retrofit. |
| Contextual information |
Building services
| Occupancy | NULL |
|---|---|
| Space heating | NULL |
| Hot water | NULL |
| Ventilation | NULL |
| Controls | NULL |
| Cooking | NULL |
| Lighting | NULL |
| Appliances | NULL |
| Renewable energy generation system | NULL |
| Strategy for minimising thermal bridges | NULL |
Building construction
| Storeys | 0 |
|---|---|
| Volume | - |
| Thermal fabric area | - |
| Roof description | NULL |
| Roof U-value | 0.00 W/m² K |
| Walls description | NULL |
| Walls U-value | 0.00 W/m² K |
| Party walls description | NULL |
| Party walls U-value | 0.00 W/m² K |
| Floor description | NULL |
| Floor U-value | 0.00 W/m² K |
| Glazed doors description | NULL |
| Glazed doors U-value | 0.00 W/m² K - |
| Opaque doors description | NULL |
| Opaque doors U-value | 0.00 W/m² K - |
| Windows description | NULL |
| Windows U-value | 0.00 W/m² K - |
| Windows energy transmittance (G-value) | - |
| Windows light transmittance | - |
| Rooflights description | NULL |
| Rooflights light transmittance | - |
| Rooflights U-value | 0.00 W/m² K |
