Addressing Energy Consumption and Climate Change Adaptation in non-South facing, post-Decent Homes properties.

download as PDF
Download
as PDF
The project property is an east-west facing, brick cavity construction, mid terrace house built in 1992. This type and era of dwelling correspond to approximately 100,000 similar social properties in England alone. We have developed a holistic strategy that will reduce the CO2 emissions of our proposed property by 80% whilst addressing how existing homes can adapt to climate change in the future. Our proposal is a combination of existing technologies used along side new innovative solutions to form a comprehensive strategy to reduce heating, hot water and electricity use. The underlying strategy is replicable across all terraced housing.

Retrofit for the future ZA347W
Images Graphs Figures Description Strategies Building

Addressing Energy Consumption and Climate Change Adaptation in non-South facing, post-Decent Homes properties. : Project images

Click on image to preview full size

East Thames_HA_Front.jpg
East Thames_HA_Rear.jpg
CO2 emissionsPrimary energy requirement
Energy target
Retrofit for the Future

Energy and fuel use

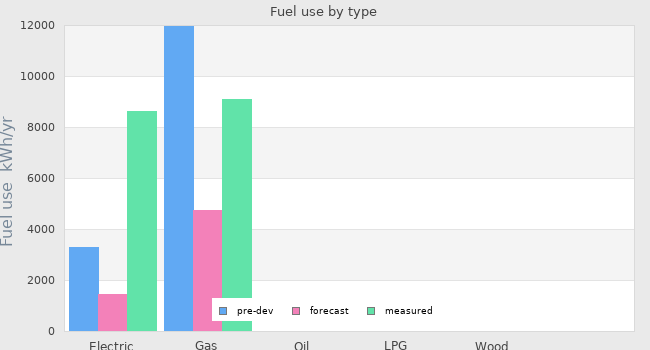

Fuel use by type

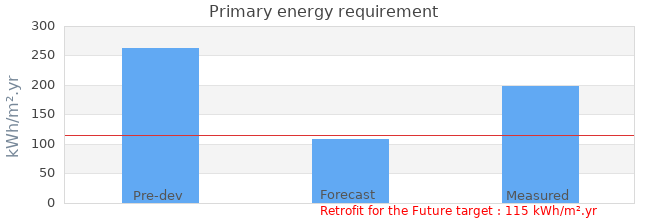

Primary energy requirement

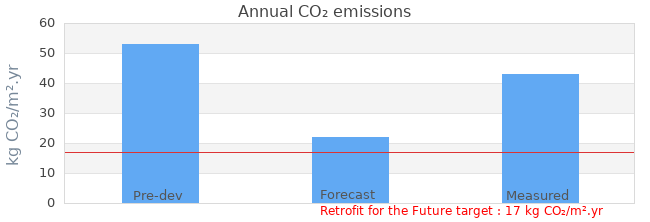

CO2 emissions

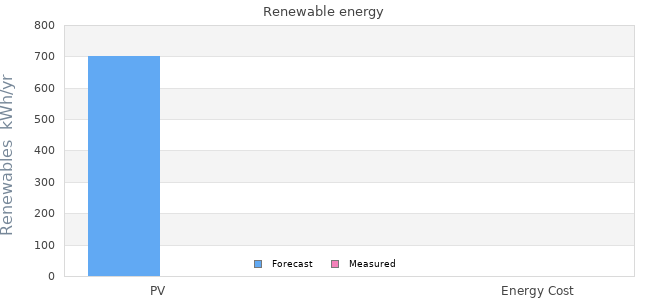

Renewables

Measured data from renewable generation is not yet available.

Fuel use

 Pre-developmentForecastMeasured
Electricity use 3303 kWh/yr 1455 kWh/yr 4319 kWh/yr
Natural gas use11983 kWh/yr 4756 kWh/yr 5016 kWh/yr
Oil use- - -
LPG use- - -
Wood use- - -
Other Fuel - - -
 Pre-developmentForecastMeasured
Primary energy requirement 263 kWh/m².yr 109 kWh/m².yr 198 kWh/m².yr
Annual CO₂ emissions 53 kg CO₂/m².yr 22 kg CO₂/m².yr 43 kg CO₂/m².yr
Annual space heat demand - 40 kWh/m².yr -

Renewable energy

Electricity generationForecastMeasured
PV702 kWh/yr -
Other Renewables Tech--
Electricity consumed by generation --
Primary energy requirement
offset by renewable generation
88 kWh/m².yr 198 kWh/m².yr
Annual CO₂ emissions
offset by renewable generation
17 kg CO₂/m².yr 43 kg CO₂/m².yr

Calculation and targets

Whole house energy calculation method SAP
Other whole house calculation method-
Energy target Retrofit for the Future
Other energy targetsReduce primary energy use to below 115 kWh/m2/yr
Forecast heating load -

Airtightness

 DateResult
Pre-development air permeability test21 April 20105.62m³/m².hr @ 50 Pascals
Final air permeability test13 September 20116.76m³/m².hr @ 50 Pascals

Project description

StageUnder construction
Start date01 March 2010
Occupation date01 January 2010
Location London London  England
Build typeRefurbishment
Building sectorPublic Residential
Property typeMid Terrace
Construction typeMasonry Cavity
Other construction typeLikely a partial fill of cavity with Uvalue of 0.55 W/m2K
Party wall constructionUninsulated masonry wall which rises beyond the roofline
Floor area 83.7
Floor area calculation method Treated Floor Area (PHPP)
Building certification

Project Team

OrganisationEast Thames Housing Association
Project lead personEast Thames Housing Association
Landlord or ClientEast Thames Housing Association
ArchitectPenoyre and Prasad
Mechanical & electrical consultant XCO2 Energy
Energy consultantXCO2 Energy and Rajat Gupta Oxford Brookes University
Structural engineer
Quantity surveyor
ConsultantRajat Gupta Oxford Brookes University
ContractorLakehouse

Design strategies

Planned occupancyThe current tenants have lived at the property for nearly 17 years. The presence of a long term, sitting tenant will help the team to collect valuable operating energy use data and demonstrate the impact of our behavioural change measures. It is proposed that the tenants will remain throughout phase 2. Close communication and considerate construction practices will help to avoid decanting the residents. We believe this is important to enhance the scalability of our proposals.
Space heating strategyCurrent secondary space heating will be removed. Primary heating will be provided via a condensing combi gas boiler that is capable of accepting preheated water. Distribution of heat will be via the existing wet radiator system with the only additions being insulation for all pipework and a bespoke feedback control and display system as discussed in 'Other relevant retrofit strategies' below.
Water heating strategyWaste water heat recovery (WWHRS) will be installed beneath the shower with a vertical heat exchanger where the heat in the waste water is transferred to the incoming cold water. A gas saver (FGHRS) will be installed which recovers heat from the exhaust gases by transferring the energy to incoming cold water. The solar thermal system has been designed to reduce the losses including; energy used to heat water that is unused before it cools down, heat loss from the store and pipework and energy used to sterilise stored water. Design features include evacuated tube collectors, insulated open vented thermal store and pipework, solar divert valve, combi boiler accepting pre-heated water, mains pressure feed and thermal store heat exchanger.
Fuel strategyMains gas and mains electricity as currently installed.
Renewable energy strategyA small photovoltaic array will be installed to create the final reductions in CO2 required to meet the Retrofit target. Our current modelling estimates that a 0.99kW array will be required although this may change as the project develops. PV array will be grid connected. The design team energy strategy was to carry out as many efficiency improvements as possible before addressing any of the target with microgeneration via renewables.
Passive Solar strategyDue to the property being east-west facing the potential for passive solar design is limited. Movable shutters or shades will be available on all glazing to allow the tenant to limit or allow solar radiation into the home as they like.
Space cooling strategyDynamic overheating modelling has been carried out on the property to determine whether overheating is a problem and whether artificial cooling would be required. It was found that with adequate sizing of secure insulated louvers/vents and a rooflight as well as internal thermal mass provided by a heavyweight finish that artificial cooling would not be required. The CIBSE Design Summer Year weather file for London was used for the modelling.
Daylighting strategyDaylight levels will be improved through the installation of the 'solar ventilation chimney' (see project images illustration). This will involve the installation of a skylight in the roof which after alterations to the loft space will project daylight to the first floor landing area which currently achieves poor daylight levels in the centre of the house. Daylight will be borrowed from the landing by all the bedrooms and bathroom. Daylighting analysis will be carried out during phase 2 to maximise the benefit of the skylight without excessive solar gain. The daylighting will allow the landing to become a useable space where a study/home office area will be placed.
Ventilation strategySecure operable louvers/vents to be installed for use during winter and when unoccupied in summer. Actuator controlled skylight to be installed in roof which will connect to the landing below by boxing out and extending into the loft. This will provide a route for a natural stack ventilation path created by the pressure difference between the high skylight opening and low level louver/vent openings. A control and real time monitoring system will provide information to the tenants on whether vents or windows should be opened to improve internal comfort. The monitoring system will be linked to CO2, internal and external temperature sensors to ensure that comfort is optimised without excessive heat loss.
Airtightness strategy Initial air tightness test has been carried out and the results show the dwelling already achieves 5.6 m3/m2/hr@ 50 Pa. Smoke stick testing (see project images) shows the majority of the air leakage is through electrical sockets, service penetrations to the internal soil stack and damaged plasterwork around openings. During the retrofit we intend to improve the air tightness to a level of 3 m3/m2/hr@ 50 Pa, which is generally accepted as the highest recommended air tightness without the use of whole house mechanical ventilation. The higher level of air tightness will be achieved through a high standard of work during the installation of other measures, including window and door replacement and the replace and enlargement of the soil duct.
Strategy for minimising thermal bridges We have already conducted some thermal imaging (see project images) which identified some thermal bridges including; window frames, front door and location where the party walls extend above the roof. These areas will be addressed via replacement of windows and external doors with high performance units with thermal break frames. The party walls will be insulated externally, as with the external walls but with additional insulation to the un-insulated loft space side of the wall to address the bridge through the roof. Further thermal imaging analysis will be carried out to identify and rectify other areas of concern. All junctions will be assessed and when insulation fitting is carried out a continuous layer will be maintained throughout.
Modelling strategySAP 2005 modelling with whole house energy v6 spreadsheet and specialised appendix Q for WWHRS and FGHRS. Overheating modelling was carried out using Appendix P of SAP and dynamic simulation via IES Virtual Environment software. Insolation analysis was carried out using Ecotect to determine the impact of mounting solar generation on an east facing pitched roof. Monitoring was carried out on the occupied dwelling on the main incoming electrical supply, all main use plug sockets, supply and use domestic hot water and main gas meter readings for a 25 day period. The data collected can be deemed representative for the whole years electricity and hot water use but can not be relied on for space heating due to the short monitoring period.
Insulation strategyExternal walls will be improved by the addition of 150mm external rigid insulation with a new render finish U-value improved to 0.15W/m K. Ground floor will incorporate vacuum insulated panels over the current beam and block floor, U-value improved to 0.15W/m K. In the roof 125mm mineral fibre between joists and 350mm above, U-value improved to 0.1 W/m K. The party walls will also be insulated to avoid heat loss shown up during the thermal imaging. Existing glazing to be replaced with high performance triple glazing, U-value of 0.7 W/m K. Front door will be replaced with a composite insulated version, U-value of 1.0 W/m K. These U-values are significantly beyond the levels expected of Part L compliant new dwellings.
Other relevant retrofit strategiesAs discussed in 'Contextual information' high electrical use is a concern and will therefore be addressed as follows. The following appliances will be replaced with current best energy performing models; tumble dryer, fridge freezer, oven, and ceramic hobs. Automatic standby power savers and a bespoke real time electricity meter will be installed to attempt to reduce the baseload by 100w. The bespoke package of feedback meters will relate real time heat and electricity usage to cost. The displays will also feature information on internal and external temperature; windows left open, extract fans on and hot water use. Internal ventilated drying space (see section in project images) will be incorporated to avoid use of the tumble dryer.
Contextual informationThe modelled and monitored data was compared with the major difference being a monitored electrical use 2.6 times higher than that predicted by SAP. The high occupancy density (4 adults in an 84m2 home) and fact that the property is occupied almost 24 hours a day is likely to be the reason for the high electrical demand (see project images for a typical days monitored electricity profile). We therefore intend to incorporate a number of electrical efficiency measures that cannot be modelled in SAP.

Building services

OccupancyNULL
Space heatingNULL
Hot waterNULL
VentilationNULL
ControlsNULL
CookingNULL
LightingNULL
AppliancesNULL
Renewable energy generation systemNULL
Strategy for minimising thermal bridgesNULL

Building construction

Storeys
Volume -
Thermal fabric area -
Roof description NULL
Roof U-value 0.00 W/m² K
Walls description NULL
Walls U-value 0.00 W/m² K
Party walls description NULL
Party walls U-value 0.00 W/m² K
Floor description NULL
Floor U-value 0.00 W/m² K
Glazed doors description NULL
Glazed doors U-value 0.00 W/m² K -
Opaque doors description NULL
Opaque doors U-value 0.00 W/m² K -
Windows description NULL
Windows U-value 0.00 W/m² K -
Windows energy transmittance (G-value) -
Windows light transmittance -
Rooflights description NULL
Rooflights light transmittance -
Rooflights U-value 0.00 W/m² K
