6 and 7, Higher Shippon, Cheriton Bishop

download as PDF
Download
as PDF
One of four pairs of dwellings in a rural location in Devon
Images Graphs Figures Description Strategies Building

6 and 7, Higher Shippon, Cheriton Bishop : Project images

Click on image to preview full size

CO2 emissionsPrimary energy requirement
Energy target
AECB Silver

Energy and fuel use

Fuel use by type

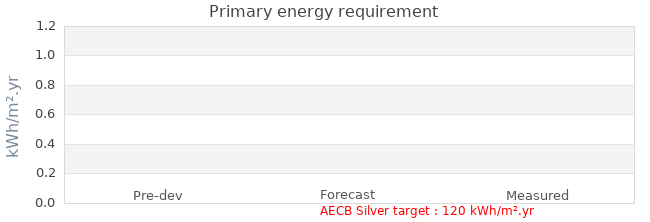

Primary energy requirement
CO2 emissions
Renewables

Measured data from renewable generation is not yet available.

Fuel use

 Pre-developmentForecastMeasured
Electricity use - - -
Natural gas use- - -
Oil use- - -
LPG use- - -
Wood use- - -
Other Fuel - - -
 Pre-developmentForecastMeasured
Primary energy requirement - - -
Annual CO₂ emissions - - -
Annual space heat demand - - -

Renewable energy

Electricity generationForecastMeasured
Renewables Technology--
Other Renewables Tech--
Electricity consumed by generation --
Primary energy requirement
offset by renewable generation
--
Annual CO₂ emissions
offset by renewable generation
--

Calculation and targets

Whole house energy calculation method
Other whole house calculation method-
Energy target AECB Silver
Other energy targets-
Forecast heating load -

Airtightness

 DateResult
Pre-development air permeability test--
Final air permeability test--

Project description

StageOccupied
Start date
Occupation date
Location Cheriton Bishop Devon  England
Build typeNew build
Building sectorPublic Residential
Property typeSemi-Detached
Construction type
Other construction type
Party wall construction
Floor area 141
Floor area calculation method Treated Floor Area (PHPP)
Building certification  AECB silver standard certified building AECB silver standard certified building

Project Team

OrganisationClassic Builders
Project lead personClassic Builders
Landlord or ClientHastoe Housing Association
ArchitectMitchell Architects
Mechanical & electrical consultant Lindab, L&D
Energy consultantWARM Low Energy Building Practice
Structural engineer
Quantity surveyor
Consultant
ContractorClassic Builders

Design strategies

Planned occupancyStandard PHPP occupancy assumptions used
Space heating strategyMonobloc air source heat pump and wet radiator systems
Water heating strategyMonobloc air source heat pumps, with immersion backup on hot water cylinder
Fuel strategyDirect electric
Renewable energy strategyAir Source Heat Pump
Passive Solar strategyPlots oriented to take advantage of solar gain within the constraints of the site.
Space cooling strategyDesign optimised within PHPP- oveheating frequency within Passivhaus requirements, utilising MVHR in bypass and natural ventilation.
Daylighting strategy
Ventilation strategyPassivhaus certified MVHR unit providing continuous ventilation.
Airtightness strategy Parge coat on blockwork, Smartply Propassiv to ceiling, all junctions taped with Proclima products and specialist grommets used where required.
Strategy for minimising thermal bridges Design reviewed and junctions optimised to reduce thermal bridging to a minimum.
Modelling strategyPHPP used at all stages of design to assess performance and test options.
Insulation strategy
Other relevant retrofit strategies
Contextual information

Building services

Occupancy
Space heatingDaikin Monobloc Air Source Heat Pump providing space heating via radiators
Hot waterDaikin Monobloc Air Source Heat Pump providing hot water via a cylinder, with direct electric immersion heater backup
VentilationPaul Novus 300 MVHR unit providing year-round ventilation.
Controls
CookingCeramic hob and electric oven
Lighting
AppliancesNone provided
Renewable energy generation system
Strategy for minimising thermal bridgesDetails assessed and optimised to minimise thermal bridging. Training provided for contractor, emphasising the importance of constructing as the design drawings and checking that the materials specified were used.

Building construction

Storeys 2
Volume 388
Thermal fabric area 425
Roof description Conventional pitched roof construction, with Smartply Propoassiv providing the airtight line to the underside of the trussses. All services kept within airtight line. Mineral wool loft insulation at 0.032W/mK to 250mm
Roof U-value 0.14 W/m² K
Walls description Conventional masonry cavity wall construction, with Aircrete block to the internal leaf and dense block to the external leaf, with a 150mm fully filled cavity in between, using 150mm of mineral wool insulation
Walls U-value 0.18 W/m² K
Party walls description
Party walls U-value -
Floor description Conventional beam and block floor with 200mm 0.035W/mK EPS insulation over.
Floor U-value 0.16 W/m² K
Glazed doors description
Glazed doors U-value - -
Opaque doors description Munster Joinery PassiV PVC doors
Opaque doors U-value 1.57 W/m² K installed
Windows description Munster Joinery PassiV PVC windows
Windows U-value 0.92 W/m² K -
Windows energy transmittance (G-value) 0.55 %
Windows light transmittance -
Rooflights description
Rooflights light transmittance -
Rooflights U-value -
