Whole house retrofit of a typical Victorian solid wall detached property in Brighton
Download
as PDF The aim is for a realistic, replicable and robust whole house solution to retrofitting solid wall Victorian housing to dramatically reduce carbon loads through space and water heating, and electrical consumption. The project will use established technologies that when combined offer the best carbon return per spent and when used together are more that the sum of their parts. The project will focus on upgrading the thermal envelope of all the external elements walls / floors / roof / glazing to achieve the optimum balance of u-values and air tightness in the context of existing building. Energy efficient services for space and water heating and appliances are the other elements of our whole house.
Retrofit for the future ZA467S
Whole house retrofit of a typical Victorian solid wall detached property in Brighton : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.

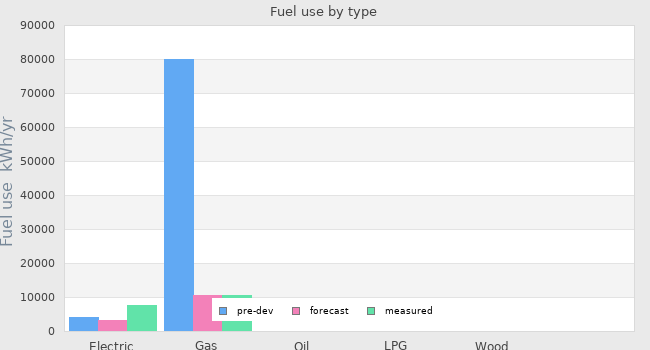

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | 4061 kWh/yr | 3162 kWh/yr | 3915 kWh/yr |
|---|---|---|---|
| Natural gas use | 80054 kWh/yr | 10647 kWh/yr | 8407 kWh/yr |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

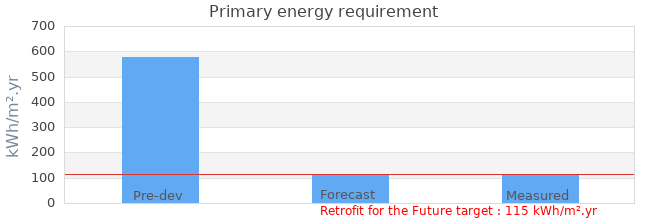

| Primary energy requirement | 577 kWh/m².yr | 114 kWh/m².yr | 110 kWh/m².yr |
|---|---|---|---|

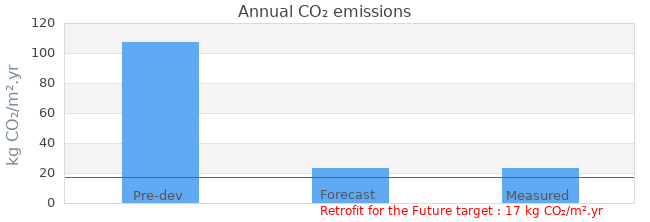

| Annual CO₂ emissions | 107 kg CO₂/m².yr | 23 kg CO₂/m².yr | 23 kg CO₂/m².yr |
| Annual space heat demand | - | 40 kWh/m².yr | - |
Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| Renewables Technology | - | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | - | - |
| Primary energy requirement offset by renewable generation | 114 kWh/m².yr | 110 kWh/m².yr |
| Annual CO₂ emissions offset by renewable generation | 23 kg CO₂/m².yr | 23 kg CO₂/m².yr |
Calculation and targets
| Whole house energy calculation method | SAP |
|---|---|
| Other whole house calculation method | - |
| Energy target | Retrofit for the Future |
| Other energy targets | - |
| Forecast heating load | 7850 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | 9.76m³/m².hr @ 50 Pascals |
|---|---|---|
| Final air permeability test | - | 3m³/m².hr @ 50 Pascals |
Project description
| Stage | Under construction |
|---|---|
| Start date | 01 March 2010 |
| Occupation date | 30 September 2010 |
| Location | Brighton East Sussex England |
| Build type | Refurbishment |
| Building sector | Public Residential |
| Property type | Detached |
| Construction type | Solid Brick |
| Other construction type | 215mm brick |
| Party wall construction | |
| Floor area | 177 m² |
| Floor area calculation method | Treated Floor Area (PHPP) |
| Building certification |
Project Team
| Organisation | Earthwise Construction Ltd |
|---|---|
| Project lead person | Earthwise Construction Ltd |
| Landlord or Client | Two Piers Housing Co-Operative |
| Architect | BBM Sustainable Design Ltd |
| Mechanical & electrical consultant | Robinson Associates |
| Energy consultant | |
| Structural engineer | |
| Quantity surveyor | |
| Consultant | NBT Consult, Roger Case Design & Management, University of Brighton |
| Contractor | Earthwise Construction Ltd |
Design strategies
| Planned occupancy | Six bedrooms, some work at home during the week. |
|---|---|
| Space heating strategy | Heating from mains gas condensing boiler feeding radiators; Heat recovered from exhaust air using very efficient MHVR system. |
| Water heating strategy | Solar hot water from evacuated tube system; Gas condensing boiler back up. |
| Fuel strategy | Mains Gas; Mains electricity. |
| Renewable energy strategy | N/a |
| Passive Solar strategy | |
| Space cooling strategy | Natural ventilation for most of the cooling season; Daytime use of MVHR with night purging during heat waves. |
| Daylighting strategy | All kitchens achieve a minimum average daylight factor of at least 2%; All living rooms, dining rooms and studies achieve average daylight factor of at least 1.5%. |
| Ventilation strategy | Comfort ventilation with heat recovery (winter); Openable windows (summer); MVHR and window opening will be monitored. |
| Airtightness strategy | External masonry to have parge coat to provide continuous air barrier with membrane all apertures taped to ensure airtightness at critical junctions; Roof structure sealed to inside face of external masonry wall to create continuous layer; Airtight layer to be sealed to insulation layer in loft; Solid concrete ground floor slab to be taped at junctions. |
| Strategy for minimising thermal bridges | Continuous insulation maintained throughout where possible; Returns of 1m insulation where internal/external insulation of front elevation occurs; Geometric thermal bridges minimised; Thermal bridging analysis undertaken for all primary junction interfaces, in order to assist with value engineering and where possible design out / reduce mechanical fixing and where necessary low-thermal conductive fixings used; Junctions assessed include: ground floor junction, external corner, eaves, verge, window jamb, head and sill, door jamb, head and threshold. |
| Modelling strategy | Whole house modeling was undertaken in SAP and PHPP. |
| Insulation strategy | Application of external insulation to solid brick walls on north, south, and east elevations (to achieve U-value of 0.15 W/m2K); Application of internal render on street facing west elevation (to achieve U-value of 0.15 W/m2K); Insulated floating floor over existing solid cement ground slab (to achieve U-value of 0.14 W/m2K); Removal of existing mineral fibre loft insulation to create service zone, joists over boarded with insulation boards and insulation boards at rafter line (to achieve U-value of 0.10 W/m2K). |
| Other relevant retrofit strategies | We are planning to carry out our package of retrofit measures with tenants remaining in the dwelling during the proposed works; We intend to demonstrate our approach can be undertaken with minimal disruption to the tenants and with no associated temporary re-housing costs. |
| Contextual information | Energy band F - current SAP energy rating of 33; Large, but compact building form with simple external architectural detailing; Few and limited external openings, bay windows on front elevation; HMO - no hierarchy of internal spaces, bedrooms on ground and first floor; Six bedrooms, several bathrooms and a large open plan kitchen and living room, with doubling up of appliances; Existing boiler system is 'heavy', unresponsive, poorly maintained and is over 25 years old; Co-operative ownership & management by residents who are RSL; Currently has high levels of multiple occupancy with vastly differing lifestyles and requires flexibility in operation; High levels of occupancy with high electrical and water requirement issues. |
